INTERCOOLER WATER TANKS:

DONT BE FOOLED BY OTHERS COPYING OUR DESIGNS, WE'VE BEEN DOING WATER TANKS SINCE 2005!

FEATURES:

  • CONTRUCTED FROM 6061T6 .090 ALUMINUM
  • 100% TIG WELDED
  • 1" or 1-1/4" FEMALE NPT IN/OUT FITTNGS
  • 1/2" FEMALE NPT DRAIN FITTING
  • 6" BLACK/CLEAR SCREW OUT LID WITH HANDLE FOR EASY ICE FILLING
  • ANTI CLOG FILTER INCLUDED ON ALL WATER TANKS WITHOUT PUMPS
  • MOUNTING TABS INCLUDED

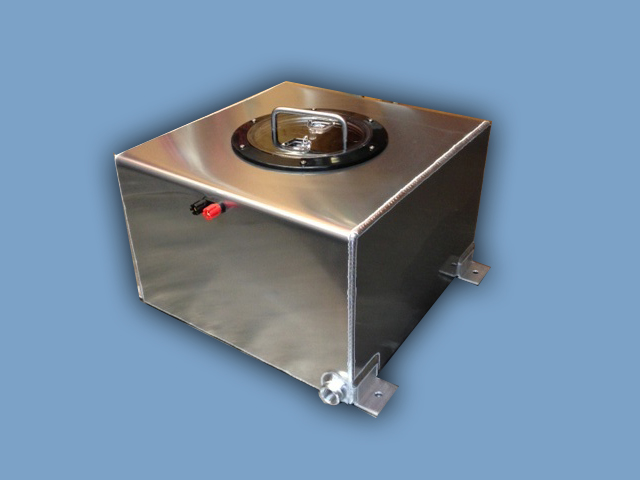

  • OPTIONAL IN TANK WATER PUMPS AVAILABLE USING RULE 10A OR 14A WATER PUMPS
  • STANDARD SIZE TANKS ARE:

PN: WT5 12"X12"X9, 5.6gls

$170.00 +shipping



PN: WT7 14"X14"X9, 7.6GLS

$180.00 +shipping



INTERNAL RULE PUMPS INSTALLED AVAILABLE:

SIMPLIFY YOUR INSTALLATION

TWO TYPES OF PUMPS CAN BE HAD WITH EITHER WT5 OR WT7 WATER TANK OR YOUR CUSTOM TANK



RULE 10A (2000GPH / 33 GPM)

FOR 1500,2000,2500HP INTERCOOLERS 1" IN/OUT

Add $125.00 for pump and installation in tank.



RULE 14A (3700GPH / 61 GPM)

FOR 3000HP, 4000HP INTERCOOLERS 1-1/4" IN/OUT

Add $190.00 for pump and installation in tank.



CUSTOM WATER TANKS OUR SPECIALTY

EMAIL OR FAX US YOUR DRAWINGS FOR A QUOTE
